Aisak Pro : Sheet Metal Works

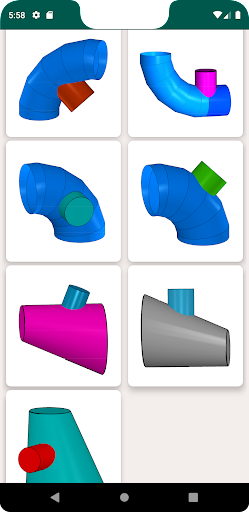

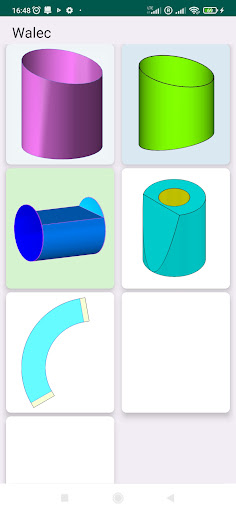

Aisak Pro _ is an application that makes it easier for employees to work with thermal and cold insulation as well as ventilation ducts. Helps you calculate the shape of a sheet metal part before forming it,to eliminate the time needed to calculate advanced sheet metal calculations.Various types of flat patterns can be processed with this application. such as. Multi-segmented elbow 90 Segmented elbow Straight elbow Angular elbow with radius Angled elbow without segment Angular elbow with segmented Symmetrical cone Chinese hatTee to pipeTee to elbowTee to industrial tank One-side cut cylinderCut cylinder on both sidesFlatteningY-Joint in Pipes of Equal DiametersConventer of DegreesCalculation of the radius of the kneeSegmented elbow _ Has two options in which the angle and the number of parts are given, so we can correct the input data so that the angle is 90 °.Angular elbow with segmented _ We give the angle and height of one arm and get from the Angular elbow form segmented elbowSymmetrical cone _ We calculate the circumference by measuring the given sections shown in the auxiliary drawing.Chinese hat _ We calculate the circumference by measuring the given sections shown in the auxiliary drawing.Tee to industrial tank_ the only difference is that we only give a lower and a higher height without an offset. Because in some cases it is difficult or even impossible to measure the change.Flattening _ We specify the position of the seam in degrees from "0 to 359.9", for the location of the seam on the side of the flattening we enter the value "-1 or -2".Conventer of Degrees_ we can convert the angle in degrees to the angle on the yardstick and vice versa.Calculation of the radius of the knee_ there are two ways to calculate the radius of the knee. Enter the diameter of the knee or the segment joining the ends of the bend of the knee. This way we can calculate any radius for an angle of 90 °.Availability in Polish, German and English.This app is under development. More insulation solutions will be added in the coming months. If anyone would like me to add a specific lauout, please send me an e-mail. .The application also has protection against entering incorrect data and leaving blank windows. A message about incorrect data or leaving blank windows is informed by displaying a short message at the bottom of the screen informing about the error.In this application, the perimeter division is a number that is divisible by 4. Place of folding is counted from 0 to the value of division minus 1
